Product Description

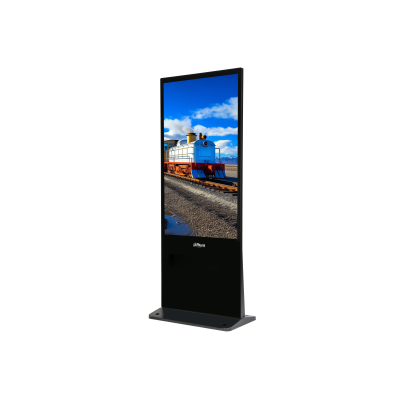

Experience high-definition vertical signage with the Dahua LDV55-SAI400TK. Built on an industrial-grade metal chassis with an A-level IPS LCD panel and LED backlight, this 55-inch display delivers striking visuals in portrait mode. It runs on Android 8.1 with a quad-core CPU and has enough processing power to decode 4K content smoothly. Whether you need split-screen layouts, scheduled content play, or remote updates through a unified platform, this signage has it all. With built-in speakers, network connectivity including LAN/USB, and optional touch and WiFi, it’s versatile for malls, lobbies, storefronts, exhibitions, and more. The design supports dependable performance over hours of continuous operation.

Specifications

• Screen: 55-inch LCD (IPS) panel

• Resolution: 2160 × 3840 (4K, portrait / vertical orientation)

• Aspect Ratio: 9:16

• Display Colors: 1.07B (10-bit color)

• Brightness: ~320 nits (typical)

• Contrast Ratio: ~1200:1

• Viewing Angle: 178° horizontal / 178° vertical

• Response Time: ≈8 ms

• Lifespan: ~30,000 hours

• Inputs & Ports: RJ-45×1, USB×2, TF slot×1, HDMI×1, Audio IN×1

• External Control: LAN (RJ-45), USB

• Optional WiFi support

• Audio: 2 × 5W built-in speakers

• Touch: Capacitive touch (if option enabled)

• Operating System: Android 8.1

• CPU: Quad-core (Cortex A17) up to ~1.6 GHz

• Memory: 2 GB RAM, 16 GB internal storage

• Power: AC 100-240V, 50/60 Hz

• Power Consumption: ≤150W; Standby <0.5W

• Operating Temperature: 0 °C to +40 °C

• Operating Humidity: 10%–85% non-condensing

• Dimensions: ~1900 mm × 745 mm × 25.5 mm

• Weight: ~50 kg (net), ~55 kg (gross)
